Grounding Cables, Coiled Wire & Retractable Reels
Coil Cable
STS coil cable is a self-retracting, UL listed grounding cable that provides better cable management by contracting when not in use. It is designed for hard service with thermoplastic elastomer insulation and jacket, and it withstands temperatures from -40°C to +90°C in harsh environments. It is one of the two operator cable types for the STS 300 Ground Monitoring System.
How it retracts
The 25 ft coil cable retracts to 4 ft, and the 50 ft coil cable retracts to 10 ft. Coil cable is not compatible with STS retractable reel options. If you need a retracting reel, use straight cable.
Options
Coil cord is offered with or without a grounding clamp. Clamp choices on this page include the K78160A, K78160ASRS, REB-IP, CB-250IP Bronze C Clamp, Dual Ball Connector, G40 Bronze, GAT-IP and VUD.
| Part number | Description |
|---|---|
| CA-25 | 25 ft coil cord only |
| CA-25K | 25 ft coil cord with K78160A grounding clamp |
| CA-25KSRS | 25 ft coil cord with K78160ASRS grounding clamp |
| CA-50 | 50 ft coil cord only |
| CA-50K | 50 ft coil cord with K78160A grounding clamp |
| CA-50KSRS | 50 ft coil cord with K78160ASRS grounding clamp |
Specifications
| Cable type | UL listed, self-retracting, service grade |
| Conductors | 2 x 16 AWG stranded copper |
| Insulation and jacket | Thermoplastic elastomer |
| Temperature range | -40°C to +90°C |
| Retracted length | 25 ft retracts to 4 ft; 50 ft retracts to 10 ft |
| Reel compatibility | Not compatible with retractable reels |
When to replace the cable
Damaged insulation may impair the proper operation of the grounding device. The STS 300 manual calls for regular inspection of the clamp cable insulation and its termination at the clamp. The cable replacement instructions (PDF) cover removal and installation.
FAQ
Can I use coil cable with a retractable reel?
No. Coil cable is not compatible with STS retractable reels. Use straight cable with a reel.
Can I order coil cable without a clamp?
Yes. CA-25 and CA-50 are coil cord only.
Need a part number for your system? Use the ordering guide or request a quote.
-
Click to Expand
Coil Cable
-
Click to Expand
Coil Cable and Clamp
We offer our Coil Cord with or without a grounding clamp.
| Part Number | Description |
|---|---|
| Part NumberCA-25 | Description25 ft. Coil Cord Only |
| Part NumberCA-25K | Description25 ft. Coil Cord with K78160A Grounding Clamp |
| Part NumberCA-25KSRS | Description25 ft. Coil Cord with K78160ASRS Grounding Clamp |
| Part NumberCA-50 | Description50 ft. Coil Cord Only |
| Part NumberCA-50K | Description50 ft. Coil Cord with K78160A Grounding Clamp |
| Part NumberCA-50KSRS | Description50 ft. Coil Cord with K78160ASRS Grounding Clamp |
Straight Cable

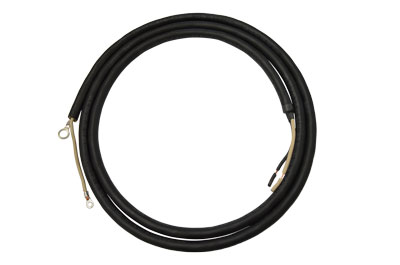

STS straight cable is a UL listed SOOW grounding cable with excellent resistance to oil, abrasion and sunlight. It withstands temperatures from -40°C to +90°C and is compatible with the STS GW-7 and AW-7 retractable reels for safe, reliable cable management. It is the operator cable choice for the STS 300 Ground Monitoring System when the cable will be used on a reel.
Options
Straight cable is offered with or without a grounding clamp. Clamp choices on this page include the K78160A, K78160ASRS, REB-IP, Dual Ball Connector, G40 Bronze and VUD. In the STS 300 ordering guide, 100 ft lengths are available in straight cable only. If you do not see your clamp and length combination, contact STS.
| Part number | Description |
|---|---|
| CA-25S | 25 ft straight cable only |
| CA-25SK | 25 ft straight cable with K78160A grounding clamp |
| CA-25SKSRS | 25 ft straight cable with K78160ASRS grounding clamp |
| CA-50S | 50 ft straight cable only |
| CA-50SK | 50 ft straight cable with K78160A grounding clamp |
| CA-50SKSRS | 50 ft straight cable with K78160ASRS grounding clamp |
Specifications
| Cable type | UL listed SOOW, service grade |
| Conductors | 2 x 14 AWG stranded copper |
| Temperature range | -40°C to +90°C |
| Resistance | Oil, abrasion and sunlight |
| Reel compatibility | GW-7 heavy duty and AW-7 standard duty retractable reels |
When to replace the cable
Damaged insulation may impair the proper operation of the grounding device, so the STS 300 manual calls for regular inspection of the ground cable and clamp cable insulation. Replace the cable if the insulation is cut, crushed or worn through. The cable replacement instructions (PDF) walk through removal and installation with a #2 Phillips screwdriver and a 9/16 in wrench.
Compatible products
- Retractable reels
- Coil Cable (not for use on reels)
- Rubber Boot for Cable Stud
FAQ
Straight or coil cable?
Choose straight cable if you need a retracting reel. Coil cable is not compatible with STS retractable reel options.
Can I order the cable with a clamp attached?
Yes. Straight cable is offered with or without a grounding clamp.
Need a part number for your system? Use the ordering guide or request a quote.
-
Click to Expand
Straight Cable
-
Click to Expand
Straight Cable and Clamp
We offer our Straight Cable with or without a grounding clamp. Below are some of the variations we offer, if you do not see your specific clamp, contact us for the exact combination.
| Part Number | Description |
|---|---|
| Part NumberCA-25S | Description25 ft. Straight Cable Only |
| Part NumberCA-25SK | Description25 ft. Straight Cable with K78160A Grounding Clamp |
| Part NumberCA-25SKSRS | Description25 ft. Straight Cable with K78160ASRS Grounding Clamp |
| Part NumberCA-50S | Description50 ft. Straight Cable Only |
| Part NumberCA-50SK | Description50 ft. Straight Cable with K78160A Grounding Clamp |
| Part NumberCA-50SKSRS | Description50 ft. Straight Cable with K78160ASRS Grounding Clamp |
