Description

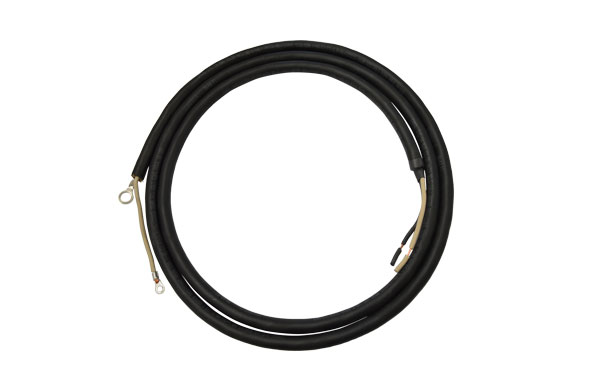

STS straight cable is a UL listed SOOW grounding cable with excellent resistance to oil, abrasion and sunlight. It withstands temperatures from -40°C to +90°C and is compatible with the STS GW-7 and AW-7 retractable reels for safe, reliable cable management. It is the operator cable choice for the STS 300 Ground Monitoring System when the cable will be used on a reel.
Options
Straight cable is offered with or without a grounding clamp. Clamp choices on this page include the K78160A, K78160ASRS, REB-IP, Dual Ball Connector, G40 Bronze and VUD. In the STS 300 ordering guide, 100 ft lengths are available in straight cable only. If you do not see your clamp and length combination, contact STS.
| Part number | Description |
|---|---|
| CA-25S | 25 ft straight cable only |
| CA-25SK | 25 ft straight cable with K78160A grounding clamp |
| CA-25SKSRS | 25 ft straight cable with K78160ASRS grounding clamp |
| CA-50S | 50 ft straight cable only |
| CA-50SK | 50 ft straight cable with K78160A grounding clamp |
| CA-50SKSRS | 50 ft straight cable with K78160ASRS grounding clamp |
Specifications
| Cable type | UL listed SOOW, service grade |
| Conductors | 2 x 14 AWG stranded copper |
| Temperature range | -40°C to +90°C |
| Resistance | Oil, abrasion and sunlight |
| Reel compatibility | GW-7 heavy duty and AW-7 standard duty retractable reels |
When to replace the cable
Damaged insulation may impair the proper operation of the grounding device, so the STS 300 manual calls for regular inspection of the ground cable and clamp cable insulation. Replace the cable if the insulation is cut, crushed or worn through. The cable replacement instructions (PDF) walk through removal and installation with a #2 Phillips screwdriver and a 9/16 in wrench.
Compatible products
- Retractable reels
- Coil Cable (not for use on reels)
- Rubber Boot for Cable Stud
FAQ
Straight or coil cable?
Choose straight cable if you need a retracting reel. Coil cable is not compatible with STS retractable reel options.
Can I order the cable with a clamp attached?
Yes. Straight cable is offered with or without a grounding clamp.
Need a part number for your system? Use the ordering guide or request a quote.
