Description

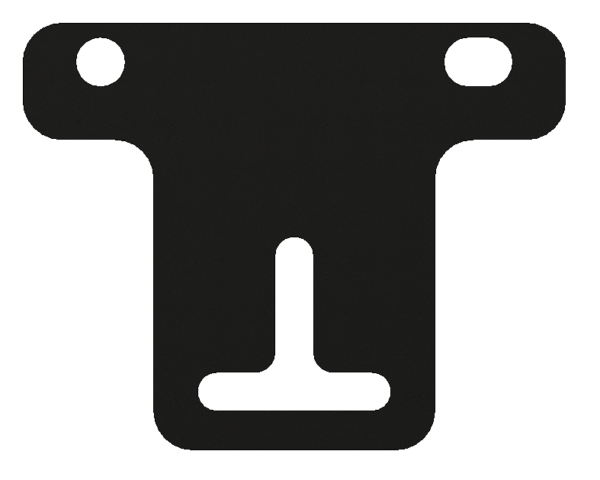

The Multipoint Clamp Stowage Plate (part number RK-16) gives operators a fixed place to attach grounding clamps when the STS 300 Multipoint Ground Monitoring System is not in use. Stowing clamps on the plate eliminates the possibility of stowing them in a way that impacts their function, and keeps them from being damaged by being left on the ground.
Compatible clamps
The stowage plate accepts the K78160A, K78160ASRS, REB-IP and GAT-IP clamps.
About the STS 300 Multipoint
The STS 300 Multipoint grounds up to four pieces of equipment from a single control device, in 2-clamp or 4-clamp configurations, and only operates when all cables are connected. With several clamps on one system, a defined stowage point helps keep each clamp clean and undamaged between transfers.
Installation
The plate mounts to the enclosure using existing enclosure bolts, and installation hardware is included. For multipoint systems, the STS 300 installation and operating manual (PDF) directs you to remove the two bottom center bolts on the enclosure, place the stowage plate over the cover and align the two mounting holes, add the two supplied 5/16 in flat washers, and refasten with the original enclosure bolts. Tighten the bolts to 11 ft-lb and do not overtighten.
Specifications
| Part number | RK-16 |
| Fits | STS 300 Multipoint Ground Monitoring System |
| Material | UV resistant and chemical resistant plastic |
| Hardware | Installation hardware included |
| Weight | 1 lb |
| Dimensions | 6.5 x 4.5 x 0.5 in |
Compatible products
- STS 300 Multipoint Ground Monitoring System
- Clamp Stowage Plate (RK-11) for single-point STS 300 systems
- K78160A Clamp, K78160ASRS Clamp, REB Clamp
FAQ
Which bolts does the multipoint plate use?
The two bottom center bolts on the enclosure, with two supplied flat washers.
Can I use this plate on a single-point STS 300?
For single-point systems, STS offers the Clamp Stowage Plate, part number RK-11.
Not sure which part fits your unit? Request a quote with your STS 300 model number and STS will confirm the part.
