Static Grounding Solutions for Chemical Processing

Chemical processing is one of the highest-risk industries for static electricity hazards. Flammable liquids like petroleum solvents and toluene create dangerous vapor mixtures at common temperatures. The movement of liquids through pipes, hoses, and filling equipment generates static charge. Powders and granules build up charge as they move through conveyors and blenders. Without proper grounding protection, a single spark can cause a fire or explosion.

A static spark during filling operations can endanger workers, destroy equipment, and shut down production for weeks. The human body can accumulate over 25,000 volts of static electricity in low humidity conditions. As little as 0.2 millijoules of spark energy can ignite most flammable vapors. NFPA 77 (Recommended Practice on Static Electricity), IEC 61140, and OSHA regulations require verified grounding and bonding during the transfer of flammable materials. Proper static grounding is a regulatory requirement and a life-safety necessity.

Special Technical Services delivers ground monitoring equipment that meets the strict demands of chemical processing plants. Our STS 300 System provides continuous monitoring of the entire ground path throughout every filling and transfer operation. If the grounding cable connection breaks, becomes disconnected or resistance exceeds safe levels, our systems trigger automatic shutdown of pumps and filling equipment. With over 50 years of experience and an ISO 9001:2015 certified quality management system, STS equipment protects chemical processing operations at facilities around the world.

Quick Facts: Chemical Processing Safety

✓
Static sparks can ignite most flammable vapors with as little as 0.2 millijoules of energy
✓
NFPA 77: Primary recommended practice for static electricity control
✓
Resistance in ground circuits should not exceed 10 ohms per NFPA 77

Static Electricity Risks in Chemical Processing

Chemical processing presents unique static electricity challenges that require specialized grounding solutions.

Default Icon

Liquid Transfers Generate Static Buildup

Flammable liquids flowing through hoses and pipes create substantial electrostatic charges through friction. Low-conductivity liquids like petroleum solvents are especially dangerous. Without proper bonding and grounding, these charges can discharge as sparks near fill nozzles or container openings. High-speed pumping at busy facilities increases this risk during peak operations.
Default Icon

Combustible Dust from Powder Handling

Chemical plants handle fine powders and granules that generate static electricity during movement. Conveyors, blenders, sieve stacks, and filling systems all create charge through friction. When dust is suspended in air and an ungrounded spark occurs, the result can be a dust explosion with devastating force. This hazard is similar to risks in grain processing and activated sludge treatment systems.
Default Icon

Containers Become Electrically Isolated

Metal containers can lose their connection to earth during operations. Paint coatings, rubber linings, plastic gaskets, and corrosion all block the path to ground. Even a plastic-lined truck bed can create dangerous isolation. Drums, IBCs, vats, and mixing vessels accumulate charge when isolated. These become ignition sources waiting to discharge.
Default Icon

Multiple Container Types Require Grounding

Chemical plants use many different containers: metal drums, stainless steel tanks, galvanized steel vessels, IBCs, and portable totes. Each type presents different ground clamp attachment challenges. The conductive surface may be covered with paint, rust, or product buildup. Workers must attach and verify ground connections repeatedly throughout each shift. Without have an active monitoring system, the operator will not know if they have made a good connection to the surface.
Default Icon

Soil Conditions Affect Earth Grounding

The effectiveness of an earth grounding system depends on soil resistivity. Dry soil, rocky terrain, and sandy conditions increase ground resistance. Some facilities use chemical earthing methods with backfill compound, mineral salts, or ground augmentation fill around grounding electrodes. Soil type and soil PH affect long-term grounding performance. Regular resistance testing confirms the grounding rod installation meets requirements.
Default Icon

Ground Connections Can Fail Mid-Operation

Grounding cables can become disconnected, corroded, or damaged during operations. Traditional earthing systems like alligator clamps and a bare copper wire provide no warning when a ground path fails. A loose clamp or broken wire can go unnoticed until an incident occurs. Visual inspection alone cannot detect all failures in the grounding wire or bonding strap connections.

How Special Technical Services Protects Chemical Processing Operations

The STS 300 System provides continuous verification that the ground path remains intact throughout every operation. The moment a ground connection is interrupted or resistance exceeds safe thresholds, our systems automatically shut down pumping equipment before a static discharge incident can occur.

Unlike simple bonding cables that provide no feedback, STS static monitoring systems verify that electricity has a safe path to ground before, during, and after every transfer. Visual indicator lamps confirm grounded status to operators: green means grounded and safe, red means the ground path is broken. Dual interlocking dry contacts provide fail-safe permissive control that integrates with existing process controlled systems and emergency shutoff devices.

✓
Continuous ground path monitoring throughout all operations
✓
Automatic equipment shutdown when ground is interrupted
✓
NEMA 7, 8, and 9 explosion-proof enclosures for hazardous locations
✓
Dual interlocking dry contacts for permissive control integration
✓
Visual status confirmation via indicator lamps
✓
Multiple power options: 12VDC, 24VDC, 120VAC, 240VAC
✓
Cable lengths from 10 to 100+ feet for various applications

Recommended Products for Chemical Processing Operations

These STS products are selected for chemical processing applications where continuous ground monitoring and explosion-proof construction are required to protect against static buildup hazards..

Ground Monitoring System

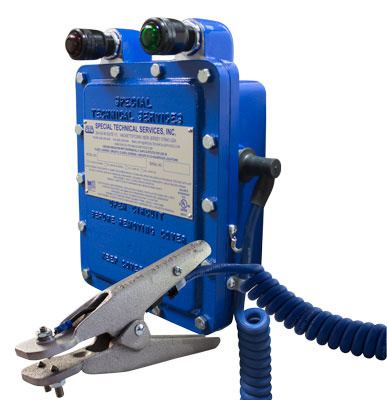

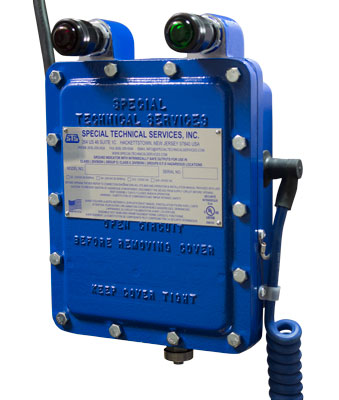

STS 300 Ground Monitoring System

The STS 300 provides continuous ground path monitoring with automatic shutdown capability. It verifies ground resistance stays below 10 ohms and gives clear visual status indication throughout operations. The system uses dual dry contacts for integration with pumps, valves, and PLCs.
Ground Monitoring System

STS 300 Multipoint Grounding System

The multipoint version monitors multiple ground connections from a single control unit. This configuration works well for facilities with several industry-specific equipment, [e.g., "loading positions," "processing stations," "fill points"] that need simultaneous ground verification.
Grounding Clamps

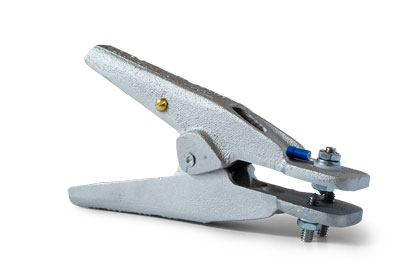

K78160A Grounding Clamp

Heavy-duty aluminum grounding clamp designed for secure attachment to tanks, containers, and process equipment. Sharp contact points penetrate paint, rust, and product buildup for reliable metal-to-metal contact.
Magnetic Grounding

StaticMag™

Quick-attach magnetic grounding device with strong neodymium magnets for fast connection to ferrous metal surfaces. Ideal for curved surfaces like storage drums and cylindrical equipment where traditional clamps cannot grip securely.

Technical Specifications for Chemical Processing Applications

All specifications comply with NFPA 77 and related chemical processing safety standards.

Specification STS 300 Series Chemical Processing Requirement
Equipment Rating Class I, Div 1 Group D & Class II Div 1 Group E,F&G Explosion-proof per NFPA 70 Class I, Division 1/2
Ground Resistance Threshold Less than 10 ohms Not exceeding 10 ohms per NFPA 77
Power Options 12VDC, 24VDC, 120VAC, 240VAC Varies by facility electrical power systems
Operating Temperature -40°F to +130°F (-40°C to +55°C) Standard chemical plant environments
Cable Length Options 10 to 100+ feet Application dependent
Response Time Less than 1 second Immediate shutdown required
Contact Rating Dual dry contacts, 15A @ 120VAC Integration with pumps, PLCs, and remote terminal units
Enclosure Material Cast aluminum, powder coated Corrosion resistant for chemical environments

Built to Meet Chemical Processing Standards

✓

NFPA 77 Compliant

Recommended Practice on Static Electricity requirements for grounding and bonding. This standard covers procedures for controlling static electricity as an ignition source in hazardous locations.

✓

NEMA 7/8/9 Rated

Explosion-proof enclosures for hazardous location installation. These ratings apply to Class I (gases and vapors) and Class II (dusts) environments found in chemical processing.

✓

ISO 9001:2015 Certified

Quality management system certification for manufacturing. Every STS product undergoes rigorous quality control at our USA facility.

✓

Made in USA

100% American manufacturing in Budd Lake, New Jersey.

✓

Additional Standards Referenced

NFPA 70 (National Electrical Code) Class I, Division 1/2; IEC 60364-1; IEC 61140; Indian Standard 3043; IEE Regulations; OSHA 29 CFR 1910.106; API RP 2003; Central Electricity Authority regulations. UL listed components meet North American safety standards.

Common Questions About Chemical Processing Grounding

Bonding connects two conductive objects together with a bonding strap so they share the same electrical potential. This prevents sparks when metal parts come close together, such as a fill nozzle approaching a drum opening. Grounding connects equipment to an earth ground point through a grounding rod so its electrical potential is near zero. In chemical processing, bonding between the fill equipment and receiving container is required while grounding to earth provides additional safety for charge dissipation.
Industry standards recommend regular inspection and testing of bonding and grounding systems. Visual inspections should happen before each use. Check clamp condition, cable integrity, and connection points. Annual resistance testing verifies the ground path measures below 10 ohms for metal circuits. Ground testing services can measure soil resistance and verify that your earth grounding system meets requirements. Soil conditions and soil type affect performance over time.
No. Drag chains and concrete contact do not provide reliable static grounding. Drag chains wear out and develop high resistance over time. Concrete can be dry, coated, or contaminated. Industry standards require positive grounding connections using purpose-designed clamps and cables. The ground path must be verified through resistance testing. STS ground monitoring systems confirm proper grounding in real-time and provide documented proof for regulatory compliance.
Soil resistivity directly affects the performance of grounding rod installations. Dry soil, rocky terrain, and sandy conditions increase ground resistance. Some facilities improve soil resistance using chemical earthing methods with Copper Chemical Earthing Electrodes, chemical fill material, or specialized materials around the grounding electrode. Regular resistance testing confirms the installation meets requirements regardless of soil conditions.
Yes. STS static monitoring systems serve water and wastewater treatment facilities, PFAS & emerging contaminants removal systems, groundwater remediation operations, ultrapure water production, membrane bioreactor plants, reverse osmosis systems, activated sludge treatment systems, and vapor phase adsorber systems. Our explosion-proof enclosures meet hazardous location requirements for facilities handling flammable chemicals. Contact STS for specific application requirements.
STS systems require less maintenance than traditional grounding cables because they monitor themselves continuously. Periodic visual inspection of cables and clamps confirms physical condition. The monitoring display shows ground path status at all times, so there is no need for manual resistance checks during normal operation. Clamp contact points should be cleaned if resistance readings increase. Replace cables that show wear or damage to maintain system integrity.

Explore Other Industries We Serve

We provide static grounding solutions across many hazardous industries including petroleum refining, rail car operations, vacuum trucks, and grain processing.

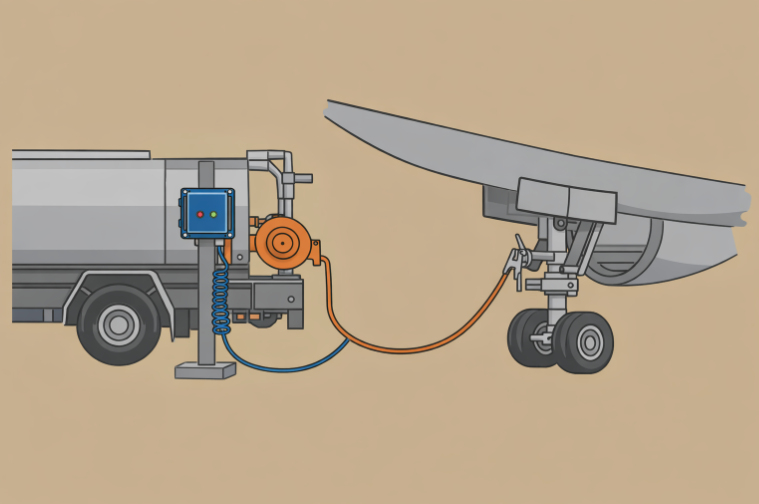

Jet Fuel Fill Station Grounding Systems

(STS) Special Technical Services- Rail Car Fill Stations Graphic

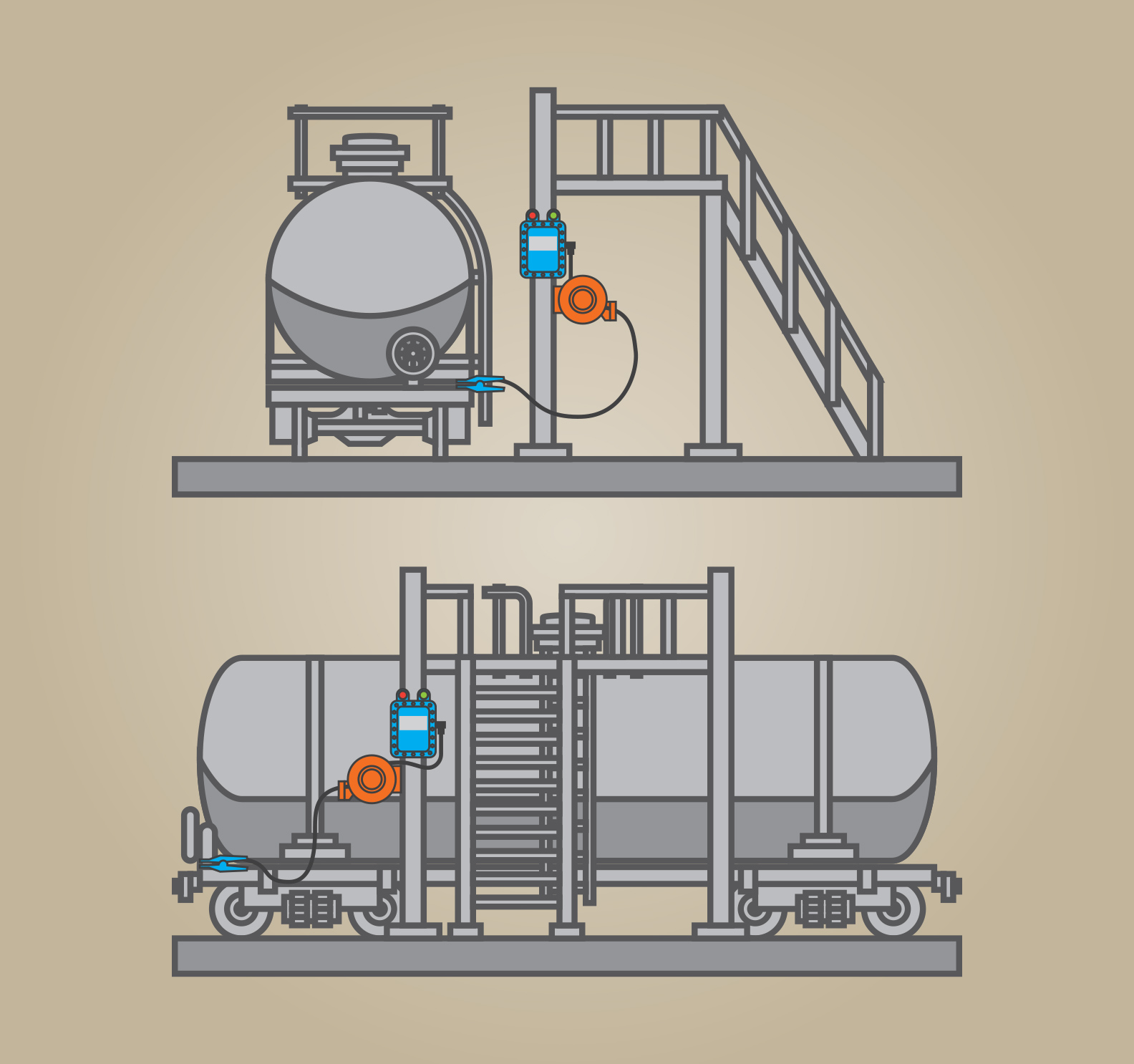

Rail Car Fill Station Static Grounding Systems

(STS) Special Technical Services - Petroleum Refining Graphic

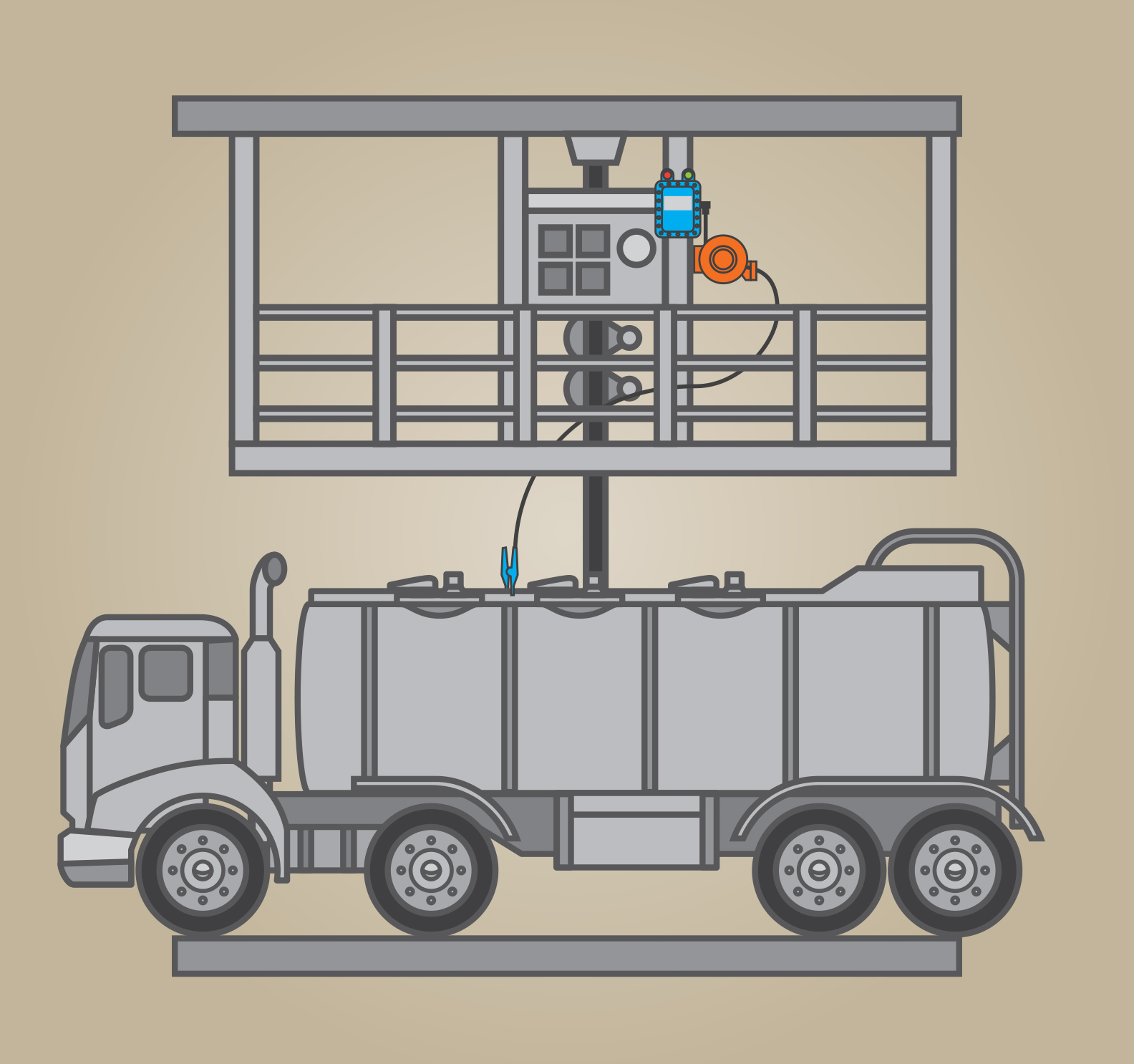

Vacuum Truck Grounding Systems

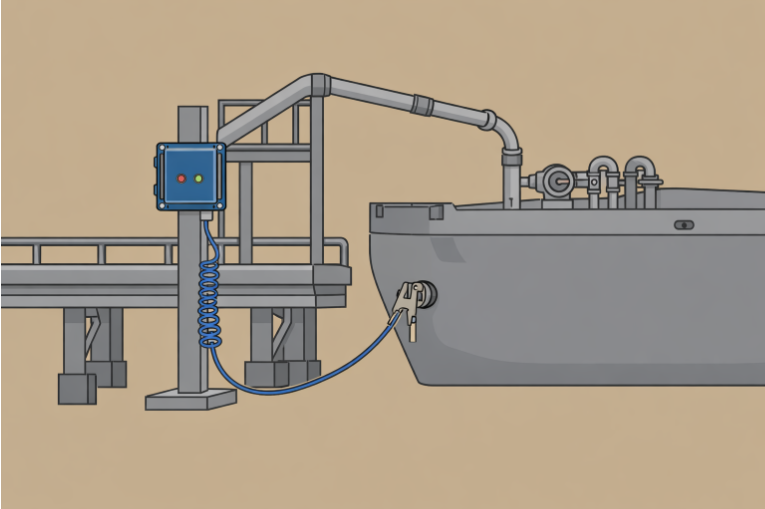

Marine Grounding Systems for Barge and Ship Operations

(STS) Special Technical Services Multipoint Grounding Station

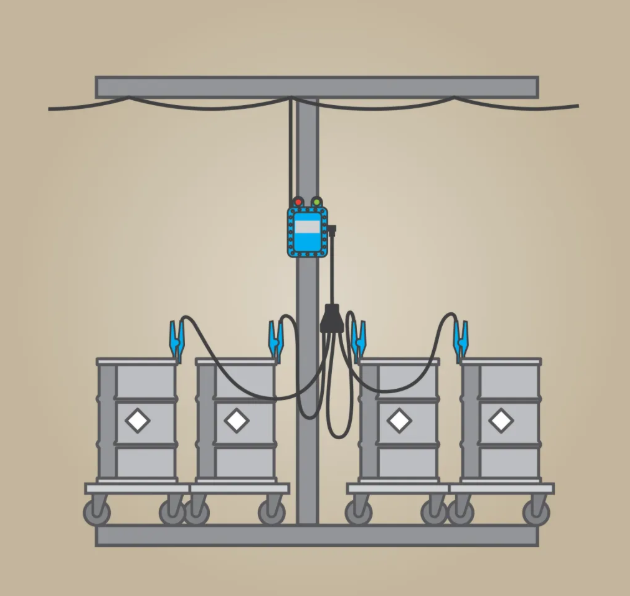

Oil Rig Grounding Systems

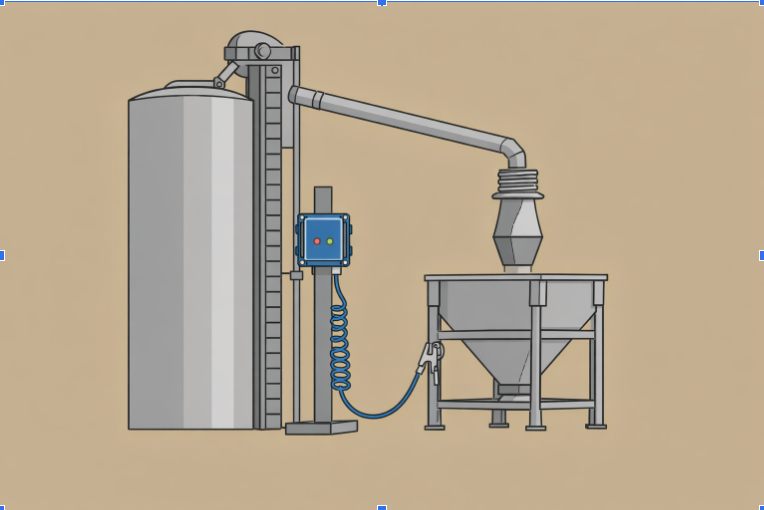

Grain & Powder Processing Static Grounding Systems

(STS) Special Technical Services - Batch Processing Graphic

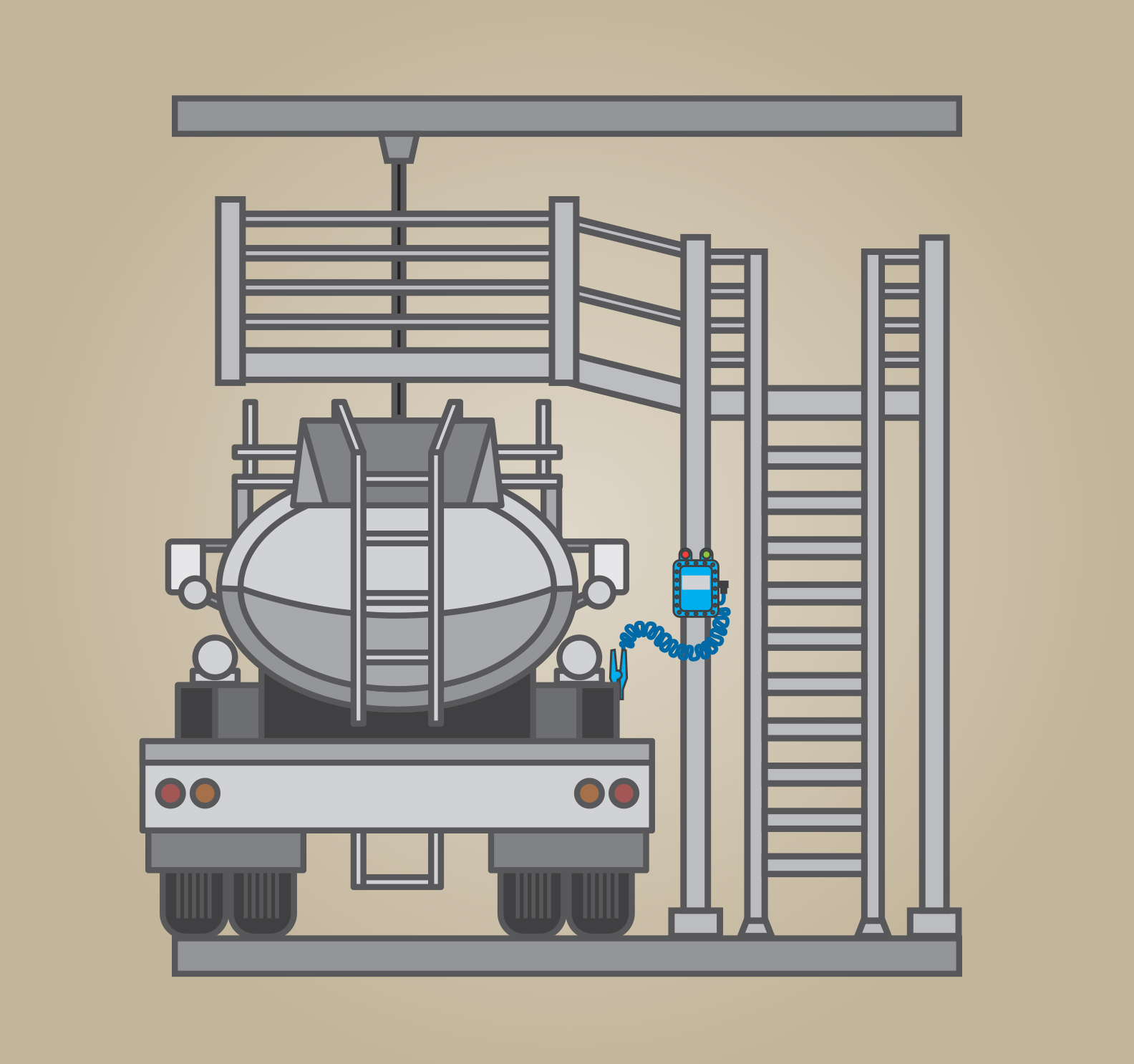

Petroleum Refinery Static Grounding Systems

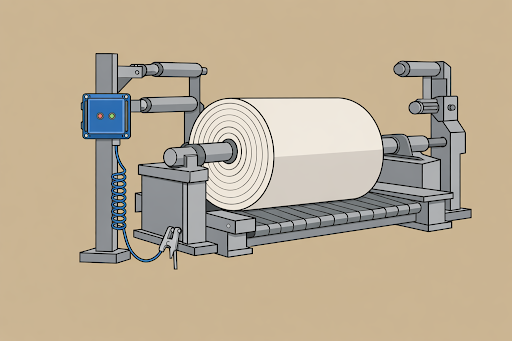

Paper Manufacturing Static Grounding Systems

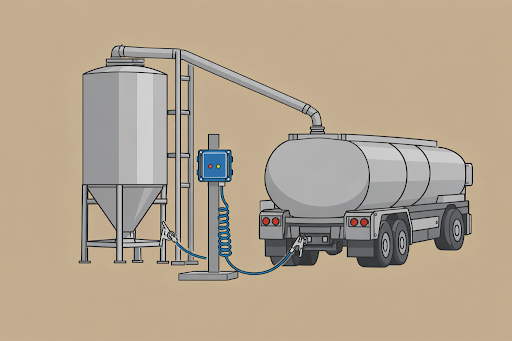

Food and Beverage Static Grounding Systems
